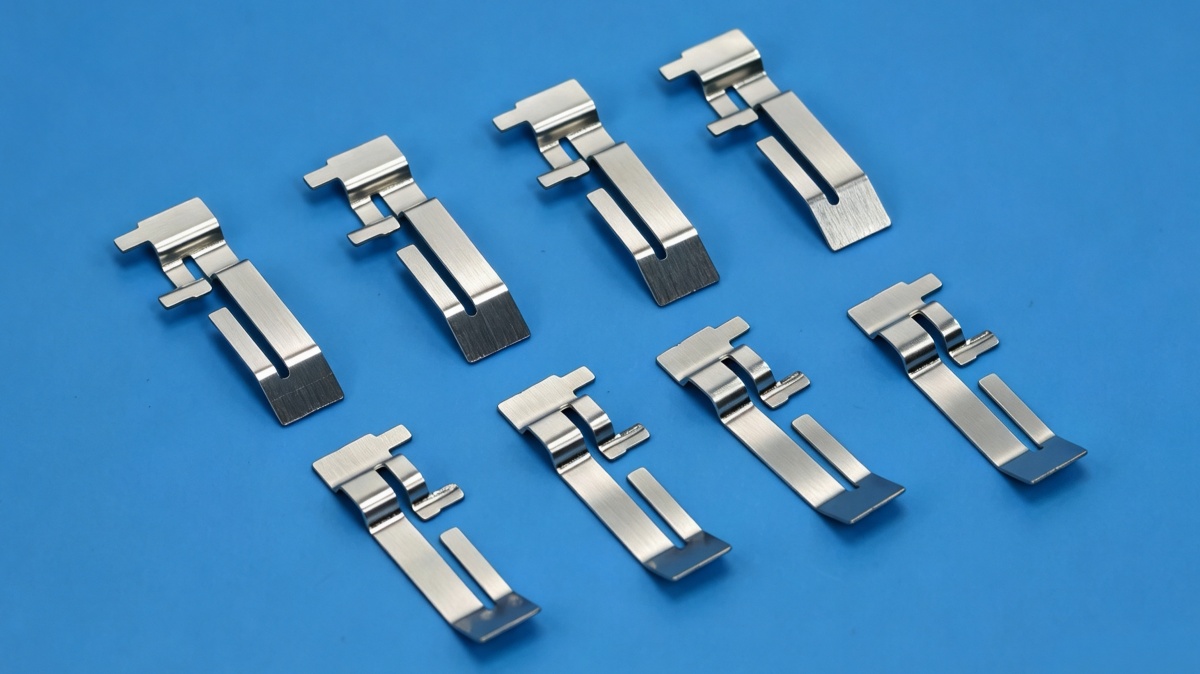

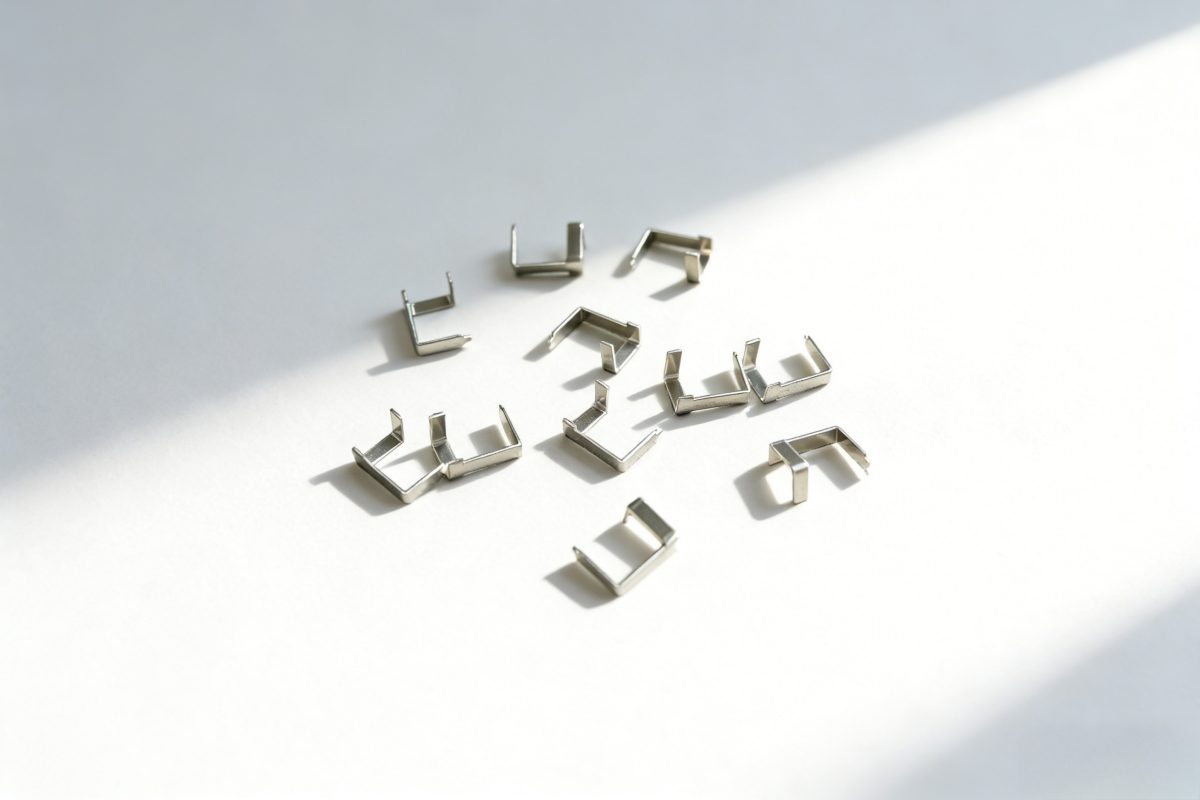

Battery Contact Spring
High-consistency metal contact springs engineered for reliable electrical conduction and tactile feedback in battery compartments, suitable for dry cells, lithium batteries, and compact electronic devices.
Highlights
- Customizable thickness across the full H3.5 to H0.9 range to meet diverse actuation force and return stroke requirements
- Multiple substrate options: copper, stainless steel (SUS301/SUS304), or phosphor bronze (C5191); plating options include nickel, silver, or selective gold to match conductivity and corrosion resistance needs
- End-to-end delivery—from design review and die development to high-volume stamping—without external coordination
- Proven integration in POS terminals, smart sensors, children’s electronics, and industrial handheld devices
Specifications
- Common Substrates
- Electrolytic copper (T2), stainless steel (SUS301/SUS304), phosphor bronze (C5191)
- Typical Thickness Range
- 0.08 mm – 0.35 mm (H0.9 – H3.5)
- Surface Finishes
- Nickel plating, silver plating, selective gold plating, passivation (selected per conductivity/corrosion resistance requirements)
- Key Tolerance Controls
- Spring arm height ±0.05 mm | Contact surface flatness ≤0.03 mm | Spring force ±10% (per customer test conditions)
- Compatible Battery Types
- AA / AAA / C / D / 9V / CR2032 / Lithium polymer pouch cells / Cylindrical lithium cells, etc.
Battery Contact Spring: Stable Electrical Conduction · Precise Rebound · Batch Consistency
Battery contact springs are critical structural components in electronic devices' battery compartments, enabling power conduction and fulfilling three core functions: electrical contact connection, tactile feedback upon pressing, and mechanical rebound. Dongguan Zhuoyi Precision Hardware Co., Ltd., leveraging years of expertise in precision stamping, provides customized battery contact spring solutions for customers across communication modules, POS terminals, industrial control terminals, smart toys, and portable digital products.
Core Functions and Application Logic
- Electrical Conduction Reliability— Achieves low-impedance current path by precisely contacting PCB pads or conductive films via the central contact point under pressed condition;
- Structural Compatibility— Accommodates spatial constraints of battery compartments for various cell formats, including cylindrical cells (No. 1 to No. 7), button cells, and pouch/hard-case lithium batteries;
- Durability and Tactile Feedback— H-series thickness gradient design (H3.5–H0.9) balances rebound force, actuation stroke, and long-term fatigue life;
- Environmental Adaptability— Base materials include copper, stainless steel, and phosphor bronze; optional surface finishes include nickel plating, silver plating, or localized gold plating to enhance oxidation resistance and contact stability.
Manufacturing Capability Enabling Selection and Implementation
Unlike generic standard parts, Zhuoyi battery contact springs emphasize 'Structure = Function' — full process control from initial drawing analysis to mass production delivery:
- No-drawing launch support: Includes sample reverse engineering, 3D structural reconstruction, and DFM feasibility assessment;
- Synchronized die development: Rapid delivery of dedicated stamping dies for non-standard dimensions, irregular bends, and multi-stage force distribution requirements;
- Batch consistency assurance: Over 60 high-speed precision stamping presses + SPC process monitoring ensure spring force, flatness, and plating thickness comply with ±5% tolerance limits per batch;
- Extended supporting services: Integrated stamping of composite features such as EMI shielding clips, positioning posts, and fool-proof structures.
Typical Application Scenarios
| Equipment Type | Functional Requirements | Common Specification References |
|---|---|---|
| POS Terminal / Cash Register | Frequent battery replacement, strong rebound feel, resistance to insertion/removal wear | H2.8, H2.5 with dual-bend locating feet |
| Wireless Doorbell / Smart Home Sensor | Ultra-thin space adaptation, low actuation force, no degradation during long-term storage | H1.4, H1.2 stainless steel monolithic construction |
| Children's Electronic Toys / Plush Products | Cost-sensitive, anti-misoperation structure, compatible with mixed AA/AAA battery usage | H3.5 copper material, nickel-plated, with positioning boss |
| Industrial handheld terminals / explosion-proof equipment | Wide-temperature performance (-20°C to 70°C), corrosion resistance, and IP-rating co-design | H2.0 phosphor bronze + full-surface nickel plating |
Why choose Zhuoyi custom battery contact springs?
We supply more than just battery contact springs—we deliver production-ready connection solutions:
- ✅Technical front-loading: Engineers participate in early structural reviews to prevent mass-production risks such as assembly interference, insufficient spring force, and plating delamination;
- ✅Rapid small-batch response: Supports pilot production validation of 500–5,000 pieces; first-sample delivery cycle ≤12 working days (including tooling);
- ✅Vertical integration: Full-process in-house control—from mold development, material procurement, stamping, electroplating, inspection, to packaging;
- ✅Electronics industry specialization: Clients span mobile phone solution providers, IoT module manufacturers, and financial terminal ODMs.
